Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Lugar de origem:

CHINA

Marca:

Cartesysj

Certificação:

Número do modelo:

CTDCG-3-4WD

Contacte-nos

Peça umas citações

Detalhes do produto

Nome:

Dinamômetro do chassi do automóvel

Caixa de carro:

BMW - Europa

Garantia:

12 meses

Carregar:

Nome do modelo:

CTDCG-3-4WD

Porta:

Guangzhou

Tensão de funcionamento (corrente):

96 V × 35 A

A fonte de alimentação:

220V ± 10% 50HZ

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Preço

$8,998.00 - $169,497.00/sets

Detalhes da embalagem

Embalagem de madeira

Tempo de entrega

20-25 dias úteis

Termos de pagamento

L/c, t/t

Habilidade da fonte

1 Conjunto/Conjuntos por Mês

PRODUTOS CONEXOS

Vídeo

Cartesykj 4WD vehicle Chassis Dynamometer Machine Horse Power Machine Automotive Power Performance tester

Obtenha o melhor preço

Chassi dinamômetro 4x4 para máquina de dinamômetro de cavalos com 5 rolos na Rússia

Obtenha o melhor preço

Máquina 4WD Dynomachine Chassis Dinamômetro Máquina Máquina de Potência de Cavalo Em Trailer

Obtenha o melhor preço

Vídeo

15t Carga Vehículo Chassis Dinamômetro Vehículo Dinamômetro Vehículo Linha de ensaio para emissões de combustível

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

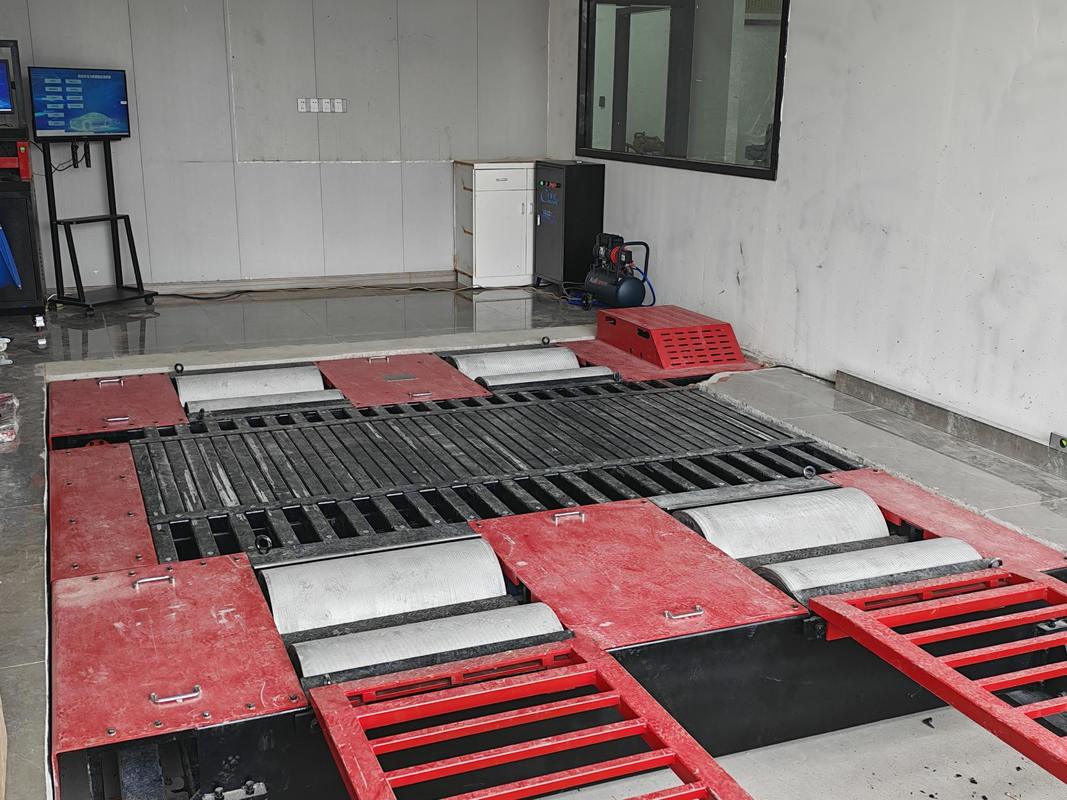

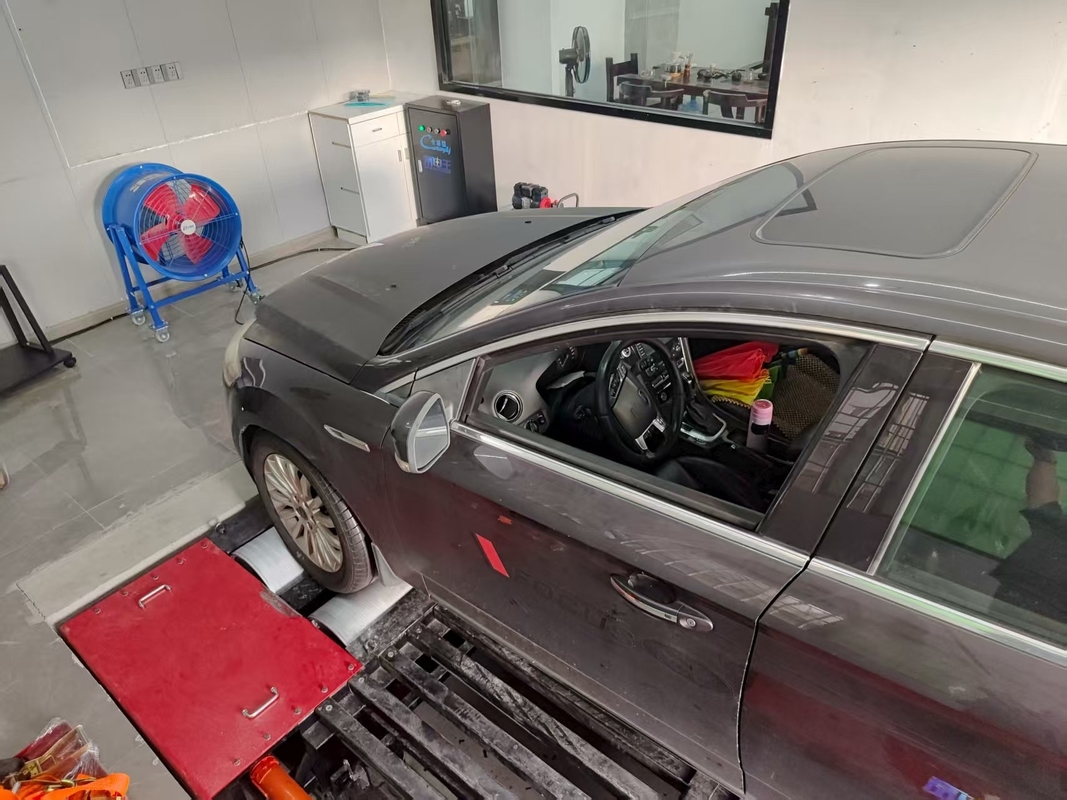

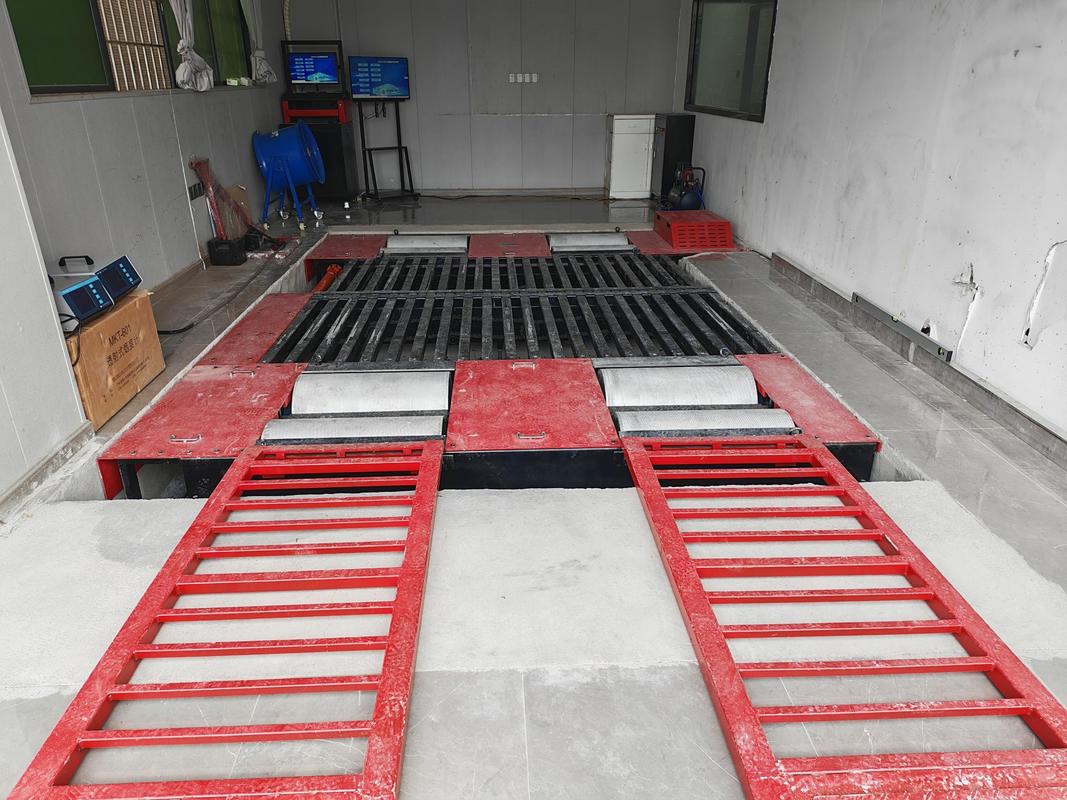

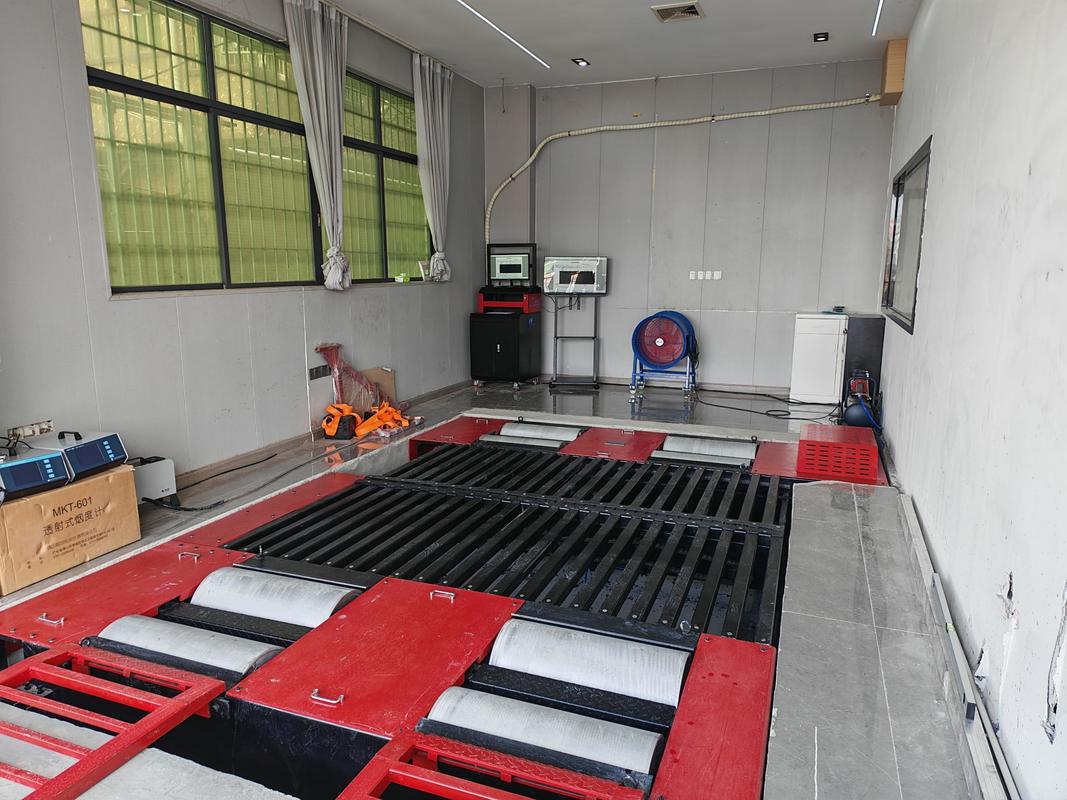

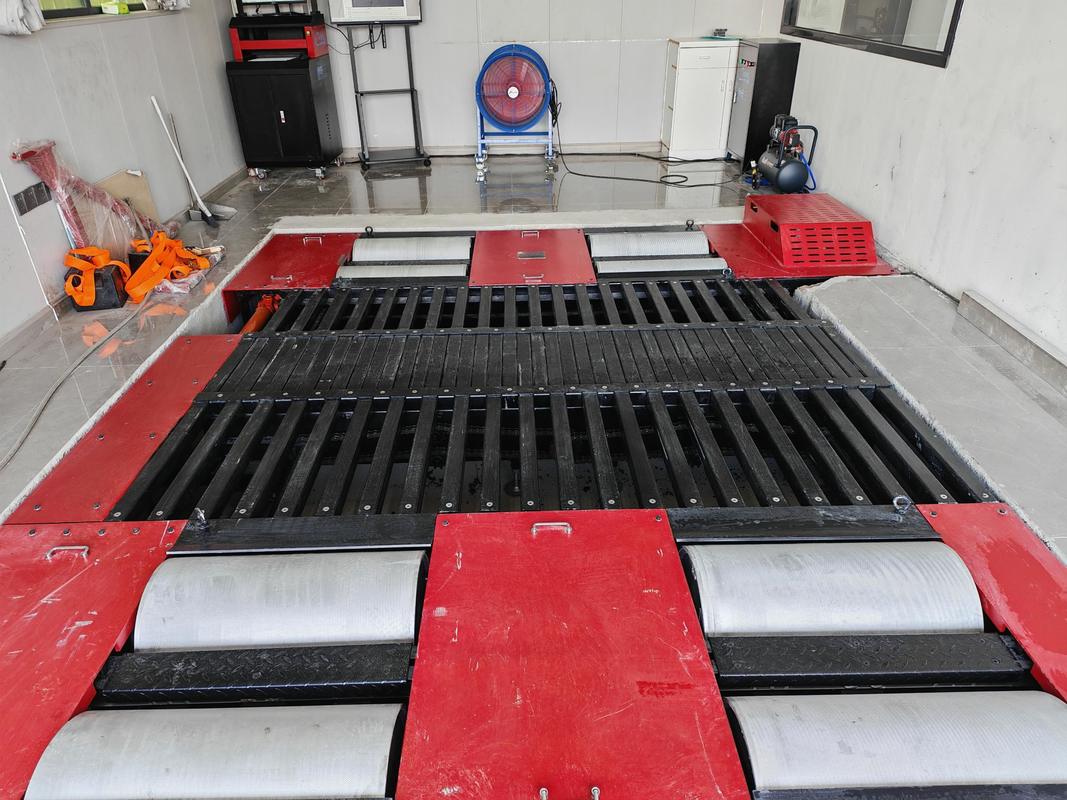

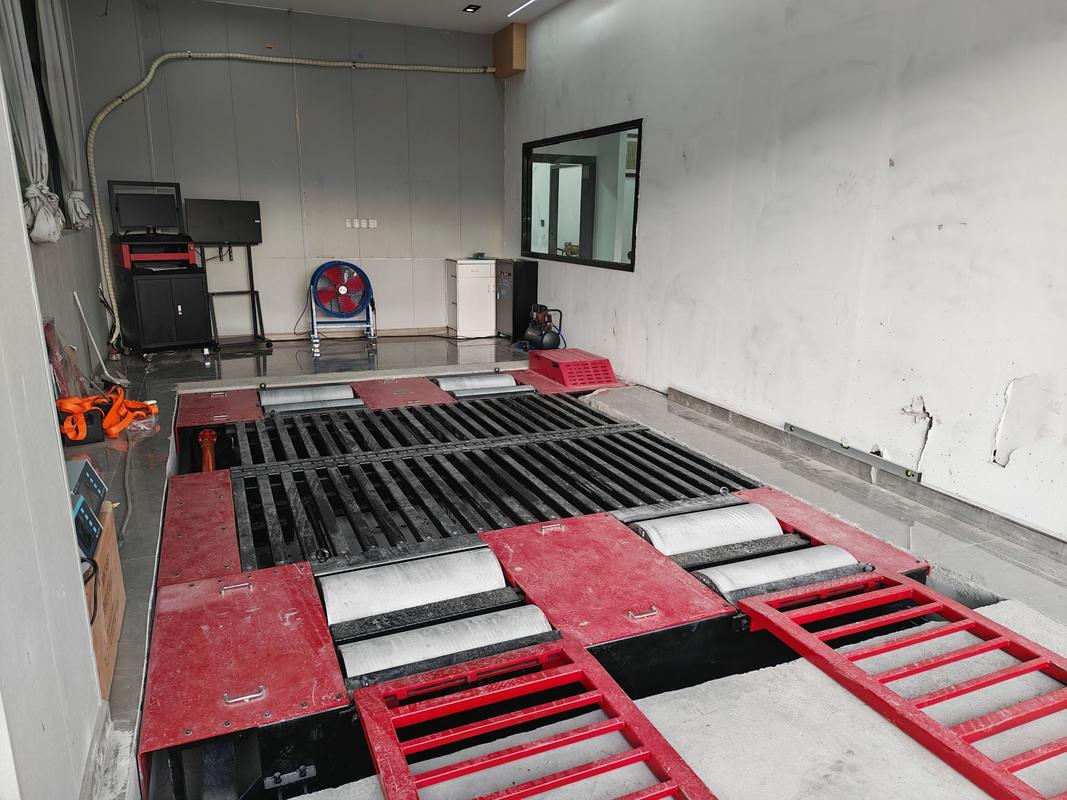

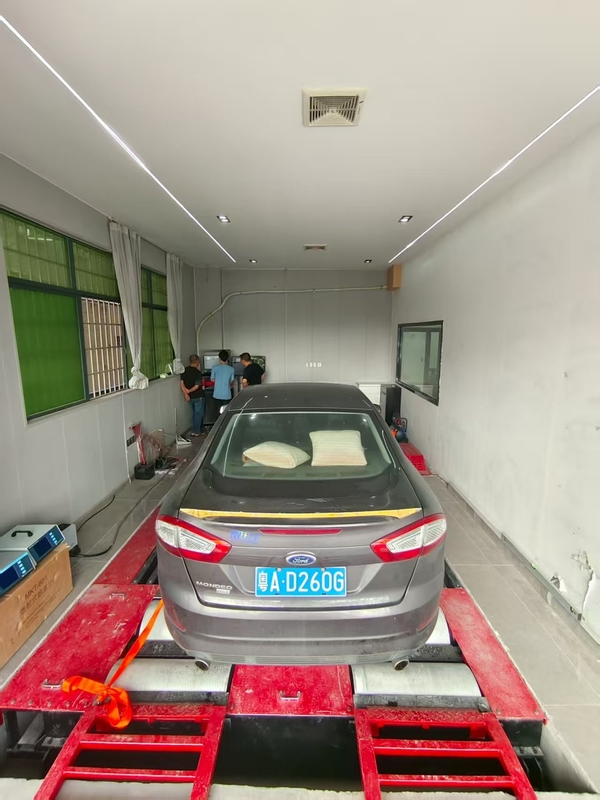

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments

Name: Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments
Brand: Cartesy Diagnosis Technology CO.,Ltd
SKU: CTDCG-3-4WD
Price: 88.00 USD
Availability: InStock

Product description:

The 4WD horsepower dynamometer is specially used to measure the chassis dynamic performance of the2WD and 4WD vehicles. It can not only accurately measure the dynamic performance at each speed, but also simulate the road to carry out the road test of routine and multi-road of the vehicles, and can also be used for vehicle refitting and ECU debugging and calibration , etc.

Technical parameters:

Model	CTDCG-3-4WD	CTDCG-10	CTDCG-13
Maximum axle-load (kg)	3000	10000	13000
Maximum absorption power (kw)	160	250	300
Maximum braking torque (Nm)	1600	2500	3000
Maximum testing speed (km/h)	130	130	130
Drum diameter x length (mm)	∮216×1000	∮318×1000	∮373×1000
center distance (mm)	480	495	600
Inside the drum width/width (mm)	700/2700	700/2700	700/2700
Working voltage (current)	96V ×35A	96V ×35A	96V ×35A
The power supply	220V ±10% 50HZ	220V ±10% 50HZ	220V ±10% 50HZ

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 0

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 1

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 2

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 3

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 4

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 5

Carteskj 4WD 1000hp Vehicle Chassis Dynamometer horse power machine Vehicle Test Lane Vehicle inspection equipments 6
